泛微E10(e-cology)运维管理平台安装周边服务rabbitmq启动失败

泛微E10(e-cology)运维管理平台安装周边服务消息队列rabbitmq启动失败解决办法
服务器：Ubuntu 22.04.3 LTS
泛微ECOLOGY运维管理平台： e-monitor-V5.0.6.020230917-RC

因为泛微E10运维管理平台对ubuntu 22.04版本兼容不好，安装之前，编辑rabbitmq自动化运维(ansible)安装包：/opt/e-monitor/ecology/tools/ansible-rabbitmq-3.7.7.zip修改后，安装的对应版本为：
Erlang版本：Erlang 24.2.1
RabbitMQ版本：RabbitMQ 3.8.16

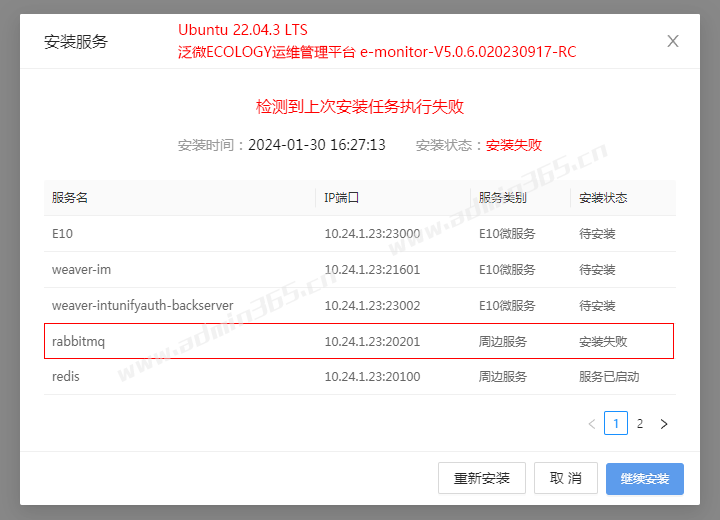

安装周边服务时，提示消息队列rabbitmq安装失败，如图：



原因及解决方法：
查看/opt/e-monitor/package/ansible-rabbitmq/ansible-rabbitmq 自动化运维记录文件，发现执行到启动rabbitmq-server服务时，提示任务失败，相关执行记录如下：

1. TASK [weaver.rabbitmq : Start service rabbitmq-server, if not started] *********

2. fatal: [mqeef76]: FAILED! => {"changed": false, "msg": "Unable to restart service rabbitmq-server: Job for rabbitmq-server.service failed because the control process exited with error code.\nSee "systemctl status rabbitmq-server.service" and "journalctl -xeu rabbitmq-server.service" for details.\n"}

3. NO MORE HOSTS LEFT *************************************************************

4. PLAY RECAP *********************************************************************

5. mqeef76                    : ok=27   changed=7    unreachable=0    failed=1    skipped=12   rescued=0    ignored=1

复制代码

根据运行记录，发现是在启动 rabbitmq 服务时出现在错误，于是我们在手工运行一次启动命令：

1. service rabbitmq-server start

2. systemctl start rabbitmq-server

复制代码

发现果然启动错误，我们根据提示，执行了 journalctl -xe ，定位到详细的报错日志信息；

1. journalctl -xe

复制代码

通过这个执行到命令行后，会打印出非常多的问题信息，让我们继续往下定位到ERROR处：

1. Feb 13 15:37:50 mqeef76 rabbitmq-server[26481]: Configuring logger redirection

2. Feb 13 15:37:51 mqeef76 rabbitmq-server[26481]: 15:37:51.676 [error] Error parsing configuration:

3. Feb 13 15:37:51 mqeef76 rabbitmq-server[26481]: 15:37:51.689 [error] File operation error: eacces. Target: /etc/rabbitmq/rabbitmq.conf. Function: get_file. Process: rabbit_prelaunch_sup.

4. Feb 13 15:37:51 mqeef76 rabbitmq-server[26481]: 15:37:51.695 [error]   - Could not open file (/etc/rabbitmq/rabbitmq.conf) for Reason undefined

5. Feb 13 15:37:51 mqeef76 rabbitmq-server[26481]: 15:37:51.695 [error] Are these files using the Cuttlefish format?

6. Feb 13 15:37:51 mqeef76 rabbitmq-server[26481]: 15:37:51.698 [error]

7. Feb 13 15:37:51 mqeef76 rabbitmq-server[26481]: 15:37:51.698 [error] BOOT FAILED

8. Feb 13 15:37:51 mqeef76 rabbitmq-server[26481]: BOOT FAILED

9. Feb 13 15:37:51 mqeef76 rabbitmq-server[26481]: 15:37:51.698 [error] ===========

10. Feb 13 15:37:51 mqeef76 rabbitmq-server[26481]: ===========

11. Feb 13 15:37:51 mqeef76 rabbitmq-server[26481]: 15:37:51.698 [error] Error during startup: {error,failed_to_parse_configuration_file}

12. Feb 13 15:37:51 mqeef76 rabbitmq-server[26481]: Error during startup: {error,failed_to_parse_configuration_file}

13. Feb 13 15:37:51 mqeef76 rabbitmq-server[26481]: 15:37:51.698 [error]

复制代码

查看打印出来的前四条错误信息为：

1. [error] Error parsing configuration:

2. [error] File operation error: eacces. Target: /etc/rabbitmq/rabbitmq.conf. Function: get_file. Process: rabbit_prelaunch_sup.

3. [error]   - Could not open file (/etc/rabbitmq/rabbitmq.conf) for Reason undefined

4. [error] Are these files using the Cuttlefish format?

复制代码

接下来，我们来检查RabbitMQ配置文件中是否存在任何错误。你可以使用以下命令检查配置文件的语法是否正确：

1. rabbitmqctl eval 'file:consult([{config_file}, {silent, true}]).'

复制代码

或者查看 rabbitmq 状态

1. rabbitmqctl status

复制代码

运行这两条命令显示结果相同，显示内容如下：

1. Error: unable to perform an operation on node 'rabbit@mqeef76'. Please see diagnostics information and suggestions below.

2.

3. Most common reasons for this are:

4.

5. * Target node is unreachable (e.g. due to hostname resolution, TCP connection or firewall issues)

6. * CLI tool fails to authenticate with the server (e.g. due to CLI tool's Erlang cookie not matching that of the server)

7. * Target node is not running

8.

9. In addition to the diagnostics info below:

10.

11. * See the CLI, clustering and networking guides on https://rabbitmq.com/documentation.html to learn more

12. * Consult server logs on node rabbit@mqeef76

13. * If target node is configured to use long node names, don't forget to use --longnames with CLI tools

14.

15. DIAGNOSTICS

16. ===========

17.

18. attempted to contact: [rabbit@mqeef76]

19.

20. rabbit@mqeef76:

21.   * connected to epmd (port 4369) on mqeef76

22.   * epmd reports: node 'rabbit' not running at all

23.                   no other nodes on mqeef76

24.   * suggestion: start the node

25.

26. Current node details:

27. * node name: 'rabbitmqcli-24-rabbit@mqeef76'

28. * effective user's home directory: /opt/weaver/rabbitmq

29. * Erlang cookie hash: uwA6pPy2Z6X3QNPinvgy9w==


复制代码

通过以上错误信息，检查　/etc/rabbitmq/rabbitmq.conf　配置文件有没有错误，发现abbitmq.conf文件权限为640，把权限改为644，再次运行“service rabbitmq-server start”命令启动服务，发现已启动正常。

重新安装rabbitmq办法：
删除上次安装目录和信息残留，即删除rabbitmq目录和已有 mnesia 信息

1. rm -rf /opt/weaver/rabbitmq

2. rm -rf /var/lib/rabbitmq

复制代码

注：
安装日志文件：/opt/e-monitor/package//logs/install.log
rabbitmq账号密码文件：
/opt/e-monitor/package/ansible-rabbitmq/rabbitmq.yml
/opt/e-monitor/package/config/db.properties

相关命令：
# 查看erlang版本
erl -version
Erlang (SMP,ASYNC_THREADS) (BEAM) emulator version 12.2.1

# 查看RabbitMQ版本号：
进入在escript目录下可以获取到版本号

1. # cd /usr/lib/rabbitmq/lib/rabbitmq_server-3.8.16/escript/

2. # rabbitmqctl version

3. 3.8.16

复制代码

# 检查RabbitMQ运行状态
rabbitmqctl status

# 查找RabbitMQ的安装路径
whereis rabbitmq
rabbitmq: /usr/lib/rabbitmq /etc/rabbitmq

# 启动 rabbitmq 服务
service rabbitmq-server start
systemctl start rabbitmq-server

# 关闭 rabbitmq 服务
service rabbitmq-server stop

# 重启 rabbitmq 服务
service rabbitmq-server restart

# 查看 rabbitmq 状态
service rabbitmq-server status

# 查看 rabbitmq 进程
我们可以通过ps -ef|grep rabbitmq命令来看 rabbitmq服务是否是启动
ps -ef | grep rabbitmq
